How to Prepare an Ultralytics Model for Use in Savant

Savant natively uses models in the NVIDIA TensorRT format, optimized for a particular hardware platform. However, users do not need to convert models manually; we encourage them to use the ONNX format, which allows Savant to build TensorRT engines internally.

Once built, the models are cached and loaded quickly unless the cache is moved to a GPU of a different GPU family (e.g., Turing to Ampere) or the batch size changes, which causes Nvinfer, used internally by Savant, to rebuild them. You may also want to rebuild the model for a particular GPU, even within the same family, to ensure it is optimal, because, depending on GPU properties, you can get a better-optimized model for that GPU, especially if you allow TensorRT to use more memory. It’s worth trying if you care about performance maximization. In this manual, we walk through exporting an Ultralytics model to the ONNX format for use in Savant.

Ultralytics is a popular model vendor; even though they require licensing, they are the backbone of many computer vision systems and are loved by ML developers.

To prepare the model, you need to conduct the following steps:

  1. Install the Ultralytics framework.
  2. Export the model to ONNX.
  3. Prepare the model archive.
  4. Upload the archive to an HTTP/FTP location.
  5. Use the model.

Installing Ultralytics Framework

Ultralytics is a Python framework with many dependencies, so it is best installed in a virtual environment. Let us create the environment and activate it:

python -m venv ultralytics_venv

And activate it:

. ultralytics_venv/bin/activate

Now, it is time to install the framework:

pip install ultralytics

The installation takes a while and requires about 8 GB of disk space.

Export the Model to ONNX

ONNX is a popular model format that has become a de facto standard for portable model distribution. Ultralytics provides command-line utilities for exporting models to ONNX. You can read the official guide for details. When you export the model, it is essential to instruct the export utility to support dynamic batch size and width/height, since YOLO-style models can operate with variable width and height.

In this manual, we will export yolo11m-seg.pt. However, the routine is the same for other models.

yolo export model=yolo11m-seg.pt format=onnx opset=17 dynamic=True imgsz=640

Where:

  • imgsz defines the default input size 640x640 but does not restrict the user from using other input sizes (including varying width-to-height ratios).
  • opset stands for ONNX supported operation set (recommended by Ultralytics).
  • dynamic stands for the dynamic batch size.

The output should look similar to the following:

ONNX: starting export with onnx 1.20.0 opset 17...
ONNX: slimming with onnxslim 0.1.80...
ONNX: export success ✅ 10.7s, saved as 'yolo11m-seg.onnx' (86.0 MB)

Export complete (11.7s)
Results saved to /mnt/development/dev/savant/Savant
Predict: yolo predict task=segment model=yolo11m-seg.onnx imgsz=640
Validate: yolo val task=segment model=yolo11m-seg.onnx imgsz=640 data=/ultralytics/ultralytics/cfg/datasets/coco.yaml
Visualize: https://netron.app

You should now be able to find the ONNX model file in the filesystem:

ls -l yolo11m-seg.onnx
-rw-rw-r-- 1 user user 90160305 Dec 19 14:14 yolo11m-seg.onnx

Let us check the model in Netron. We are interested in the input and output layers:

Netron model input layers

What we can see:

  1. The model is dynamic: batch is not a constant but a parameter.
  2. The height is a parameter.
  3. The width is also a parameter.

Netron model output layers

Output layers also have a dynamic batch size as expected. So far, so good.

Netron dynamic verification

Prepare the Model Archive

When the models are distributed remotely, prepare a ZIP archive containing the model’s ONNX file and any required auxiliary files, along with a checksum file.

Let us create a zip file:

zip yolo11m-seg.zip yolo11m-seg.onnx
  adding: yolo11m-seg.onnx (deflated 17%)

Let us generate the ZIP file MD5 checksum:

md5sum yolo11m-seg.zip | tee yolo11m-seg.md5
a1dba6c915dc61f904e1a41cce7596f9  yolo11m-seg.zip

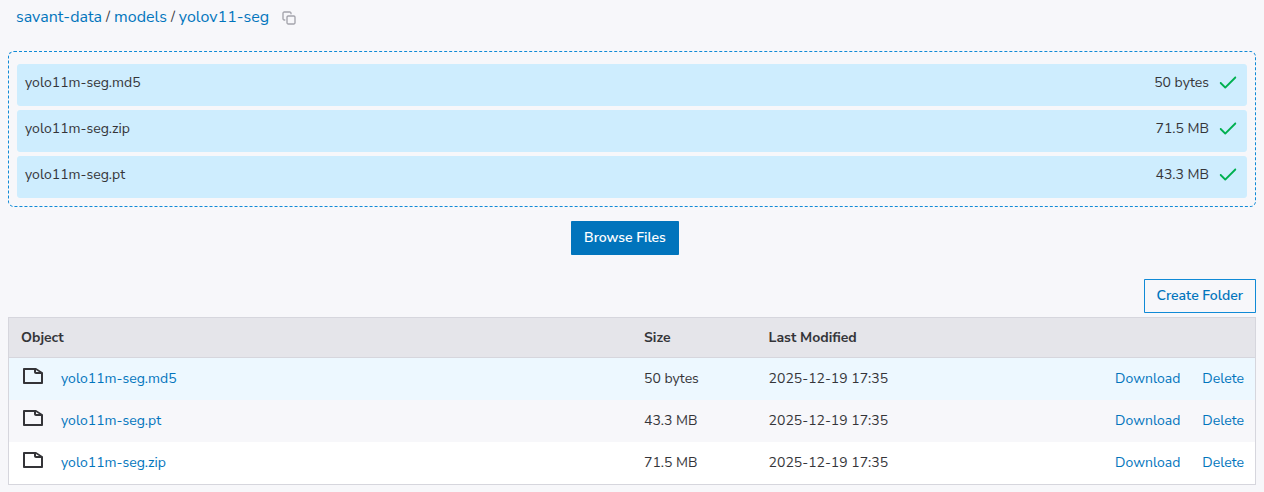

Now is the time to upload the files to a remote storage service. This step is not demonstrated in the guide because it depends on your remote.

The PT file is not needed but has been added for observability and traceability.

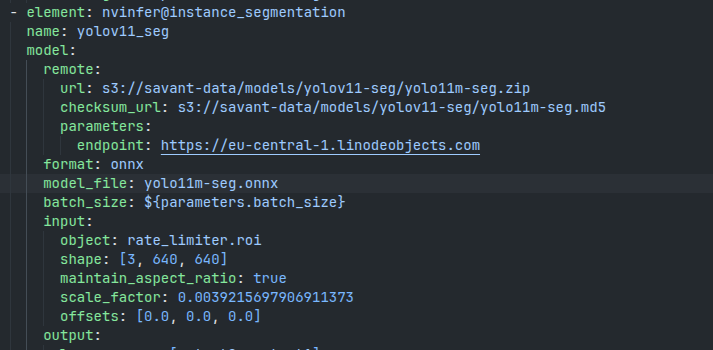

Let us use the model in the pipeline. In my case, I’m planning to update our yolov8-seg demo to use yolo11m-seg.

If you encounter a naming issue and the model cannot be found locally, remove the model files from the cached downloads and repeat.

Summary

This tutorial provides simple steps to prepare Ultralytics models for use with Savant. It is important to export the model with a dynamic batch size to make sure it functions properly when the batch size changes.

Do not hesitate to contact us on Discord to learn more about Savant and to make quick progress with community support.
