Introduction

Most video analytics pipelines follow a linear pattern: ingest a frame, run inference, output results. But real-world scenarios often require parallel processing — fanning a single video stream out to multiple independent pipelines and then merging their metadata back into a unified result.

Consider a typical production setup: a single camera feed needs person detection, vehicle detection, and license plate recognition simultaneously. Each task runs in its own Savant module — possibly on different hardware or with different model architectures — but the final consumer (a dashboard, an alerting system, a video archive) needs a single, coherent frame that carries all of these annotations together. This is the problem the meta-merge service solves: it collects frames that have been independently enriched by parallel branches and reunites their object metadata onto one canonical frame.

Why This Sample Splits the Frame Spatially

In production, the parallel branches typically operate on the same top-level ROI — the full frame, or the same region of interest. Each branch adds its own kind of objects (persons from one model, vehicles from another), and the merge simply combines them. The correctness of such a merge is hard to verify visually: you would need to know which objects came from which branch.

This sample deliberately takes a different approach. Instead of running different models on the same region, it splits each frame into left and right halves and runs the same YOLOv11 detector on each half independently. This spatial split is a pedagogical design choice that makes merge correctness immediately visible:

  • If you see person detections on both the left and right halves of the output frame, the merge clearly succeeded — each half’s results were correctly imported.
  • If detections appear only on one side, the merge failed, and you know exactly which branch is broken.
  • Synthetic marker objects with identical drift patterns and confidence values are placed in both ROIs by the router, providing an additional visual proof: matching markers confirm the object trees were reunited faithfully.

The same meta-merge infrastructure demonstrated here works identically when multiple pipelines share a single ROI and contribute different object types. Only the router and merge handlers change — the framework, the transport, the Docker Compose topology, and the E2E test strategy all remain the same.

What We Will Build

This article walks through building the complete sample with Savant and savant-rs, an open-source framework for high-performance video analytics:

  1. A router that assigns left/right ROI objects to each frame and routes copies to two parallel modules
  2. Two detector modules running YOLOv11 on their respective ROIs
  3. A meta-merge service that reunites detection results onto a single frame
  4. Declarative visualization with annotated bounding boxes
  5. An automated end-to-end test that validates merge correctness

By the end, you will have a six-service Docker Compose application that runs on both Jetson (L4T) and x86 with discrete GPUs, plus a test harness that can run in CI.

                         ┌─ module-left  ─┐
video-loop-source → router                 ├→ meta-merge → visualization → always-on-sink
                         └─ module-right ─┘

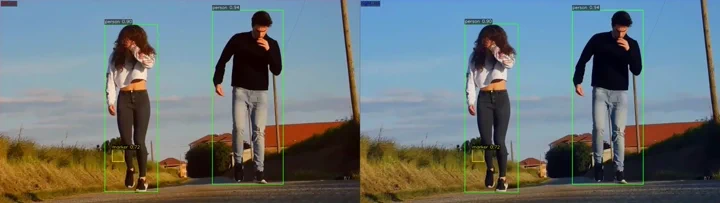

Here is what the running pipeline looks like — left/right ROIs with YOLO detections and synthetic markers overlaid on the merged output frame:

Meta-merge pipeline in action — left/right ROIs with YOLO detections and synthetic markers

Prerequisites

  • Docker with Compose v2+
  • An NVIDIA GPU with drivers installed (Jetson or x86 dGPU)
  • Basic familiarity with Docker Compose, ZeroMQ concepts, and YAML

All code referenced in this article lives under samples/meta_merge/.

Step 1: Define the Directory Layout

Good organisation pays for itself quickly when a sample has many moving parts. Here is the structure we will build:

meta_merge/
├── docker-compose.l4t.yml          # Base — Jetson images, all config
├── docker-compose.x86.yml          # x86 dGPU — extends l4t
├── docker-compose.x86-test.yml     # E2E test — replaces source/sink
├── src/
│   ├── router/
│   │   ├── config.json             # Router socket & handler config
│   │   └── handler.py              # Creates left/right ROI objects
│   ├── detector/
│   │   ├── module.yml              # YOLOv11n pipeline definition
│   │   ├── roi_ingress_filter.py   # Removes the "wrong" ROI per instance
│   │   └── roi_resolver.py         # ${py:} resolver for ROI input object
│   ├── meta_merge/
│   │   ├── config.json             # Meta-merge socket & callback config
│   │   ├── module.py               # Merge, ready, expired handlers
│   │   └── roi_constants.py        # Shared string constants
│   └── visualization/
│       └── module.yml              # Declarative draw_func
└── test/
    ├── Dockerfile                  # savant-rs + PyTorch + Ultralytics
    ├── source.py                   # Ground-truth source
    ├── sink.py                     # IoU comparison sink
    └── create_test_image.py        # Downloads a test image

The key design principle: one source of truth. docker-compose.l4t.yml is the canonical definition. The x86 and test variants only override what they must.

Step 2: Shared Constants

Before writing any service, extract the string literals that multiple services will share into a single Python file. Duplicating labels like "left_roi" across router, filter, and merge handlers is a guaranteed source of silent, hard-to-debug mismatches.

# src/meta_merge/roi_constants.py

ROI_NAMESPACE = 'router'
LEFT_ROI_LABEL = 'left_roi'
RIGHT_ROI_LABEL = 'right_roi'
ROI_LEFT = 'left'
ROI_RIGHT = 'right'
VALID_ROIS = (ROI_LEFT, ROI_RIGHT)

EXPECTED_INGRESS_COUNT = 2

Every Python component imports from this file. But what about YAML config files like the detector’s module.yml? Savant supports Python resolvers — the ${py:module.path, function_name} syntax calls a Python function at config load time and substitutes the return value. This lets YAML configs reference the same shared constants instead of duplicating string literals.

We use this in the detector pipeline to derive the ROI input object name from roi_constants.py:

# src/detector/roi_resolver.py
import os
from samples.meta_merge.src.meta_merge.roi_constants import (
    LEFT_ROI_LABEL, RIGHT_ROI_LABEL, ROI_LEFT, ROI_NAMESPACE,
)

def roi_input_object() -> str:
    roi = os.environ.get('MODULE_ROI', 'left').lower()
    label = LEFT_ROI_LABEL if roi == ROI_LEFT else RIGHT_ROI_LABEL
    return f'{ROI_NAMESPACE}.{label}'

Then in module.yml, instead of hardcoding router.${oc.env:MODULE_ROI}_roi:

input:
  object: ${py:samples.meta_merge.src.detector.roi_resolver, roi_input_object}

This way the ROI namespace and label conventions are defined once in roi_constants.py and consumed everywhere — Python handlers, ingress filters, and YAML configs alike.

Step 3: The Router — Splitting the Frame

The router is a savant-rs service that receives a video stream and fans it out to multiple egress endpoints based on labels. Its configuration lives in two files: a JSON socket config and a Python handler.

Router Configuration (src/router/config.json)

The router config declares one ingress (the video source) and two egress endpoints (left and right detector modules). Socket URLs use ${ENV_VAR} templating so the same config works across compose variants:

{
    "ingress": [
        {
            "name": "ingress",
            "socket": { "url": "${ZMQ_INGRESS}" },
            "handler": "ingress_handler"
        }
    ],
    "egress": [
        {
            "name": "left",
            "socket": { "url": "${ZMQ_EGRESS_LEFT}" }
        },
        {
            "name": "right",
            "socket": { "url": "${ZMQ_EGRESS_RIGHT}" }
        }
    ],
    "common": {
        "init": {
            "python_root": "${PYTHON_MODULE_ROOT}",
            "module_name": "router",
            "function_name": "init",
            "args": null
        },
        "source_affinity_cache_size": 1000
    }
}

The "handler": "ingress_handler" tells the router to call a registered Python handler for every incoming message.

Notice that the egress declarations have no "matcher" fields. When a router egress omits the label matcher, every frame is duplicated to that egress — both left and right receive an identical copy of the frame. This is exactly what we want: each module gets the full frame (with both ROIs attached) and then its ingress filter removes the ROI it should not process.

Router Handler (src/router/handler.py)

The ingress handler’s job is to create ROI objects on each frame that tell downstream modules which region of the image to process:

from savant_rs import register_handler
from savant_rs.primitives.geometry import RBBox
from savant_rs.utils.serialization import Message
from meta_merge.roi_constants import LEFT_ROI_LABEL, RIGHT_ROI_LABEL, ROI_NAMESPACE

class IngressHandler:
    def __call__(
        self, message_id: int, ingress_name: str, topic: str, message: Message
    ) -> Message:
        frame = message.as_video_frame()
        if frame is None:
            return message

        width = frame.width
        height = frame.height

        # Remove all pre-existing objects and their subtrees.
        # MatchQuery.idle() matches everything; export_complete_object_trees
        # with delete_exported=True removes full trees (delete_objects does
        # NOT cascade — children would become orphaned).
        frame.export_complete_object_trees(MatchQuery.idle(), delete_exported=True)

        # Left half: (0, 0) to (width/2, height)
        left_bbox = RBBox.ltwh(0, 0, width / 2, height)
        frame.create_object(
            namespace=ROI_NAMESPACE,
            label=LEFT_ROI_LABEL,
            detection_box=left_bbox,
            confidence=1.0,         # Required by DeepStream!
        )

        # Right half: (width/2, 0) to (width, height)
        right_bbox = RBBox.ltwh(width / 2, 0, width / 2, height)
        frame.create_object(
            namespace=ROI_NAMESPACE,
            label=RIGHT_ROI_LABEL,
            detection_box=right_bbox,
            confidence=1.0,
        )

        return message

def init(params) -> bool:
    register_handler('ingress_handler', IngressHandler())
    return True

Critical detail: the confidence=1.0 parameter is mandatory for objects that will be used as ROIs by DeepStream’s nvinfer. Omitting it causes a TypeError at runtime because the DeepStream metadata layer expects a float, not None.

The handler also creates synthetic marker objects as children of each ROI — small squares with a Lissajous drift pattern and random confidence. These markers let users visually verify that the merge is working correctly: if both markers appear on the final frame with matching positions and confidence, the merge succeeded.

Documentation: VideoFrame.create_object, RBBox

Step 4: The Detector Modules — Parallel Inference

Each detector module is a standard Savant DeepStream pipeline that runs YOLOv11n. The same module.yml is used for both module-left and module-right — the MODULE_ROI environment variable controls which half each instance processes.

Detector Pipeline (src/detector/module.yml)

The pipeline definition wires up the YOLO model and tells it which ROI object to use as input:

pipeline:
  source:
    element: zeromq_source_bin
    properties:
      socket: ${oc.env:ZMQ_SRC_ENDPOINT}
    ingress_frame_filter:
      module: samples.meta_merge.src.detector.roi_ingress_filter
      class_name: ROIIngressFilter
      kwargs:
        roi: ${oc.env:MODULE_ROI, 'left'}
  elements:
    - element: nvinfer@detector
      name: yolov11n
      model:
        format: onnx
        model_file: yolo11n.onnx
        input:
          object: ${py:samples.meta_merge.src.detector.roi_resolver, roi_input_object}
          shape: [3, 640, 640]
        output:
          num_detected_classes: 80
          objects:
            - class_id: 0
              label: person
            - class_id: 2
              label: car
            # ... more classes

Two things to note:

  1. input.object uses a ${py:} resolver to call roi_input_object() at config load time, which reads the MODULE_ROI environment variable and returns the fully qualified ROI name (e.g., router.left_roi) from the shared roi_constants.py. No string literals to keep in sync.
  2. ingress_frame_filter runs before any pipeline element and removes the ROI that this module instance should not process.

Ingress Filter (src/detector/roi_ingress_filter.py)

The filter removes the “wrong” ROI and its children (such as the synthetic markers created by the router). This prevents the left module from processing right-half objects and vice versa:

from savant.base.frame_filter import BaseFrameFilter
from savant_rs.match_query import MatchQuery, StringExpression

class ROIIngressFilter(BaseFrameFilter):
    def __init__(self, roi: str, **kwargs):
        super().__init__(**kwargs)
        self.roi = roi.lower()

    def __call__(self, video_frame) -> bool:
        remove_label = RIGHT_ROI_LABEL if self.roi == ROI_LEFT else LEFT_ROI_LABEL

        query = MatchQuery.or_(
            # The wrong ROI itself
            MatchQuery.and_(
                MatchQuery.namespace(StringExpression.eq(ROI_NAMESPACE)),
                MatchQuery.label(StringExpression.eq(remove_label)),
            ),
            # Any children parented to the wrong ROI
            MatchQuery.parent_label(StringExpression.eq(remove_label)),
        )
        video_frame.delete_objects(query)
        return True

The MatchQuery.or_() approach works here because the object hierarchy is only one level deep (ROI → children). For deeper trees, use export_complete_object_trees(query, delete_exported=True) which cascade-deletes at any depth.

Documentation: MatchQuery, BaseFrameFilter

Step 5: The Meta-Merge Service — Reuniting the Results

After both modules finish, their results need to be combined onto a single frame. The meta-merge service is a generic, Python-extendable merging framework built in Rust. It does not contain any domain-specific merge logic — all decisions are delegated to user-registered Python callbacks.

Meta-Merge Configuration (src/meta_merge/config.json)

The config is structurally different from the router’s. It has two ingress endpoints (one per module), a single egress, and a callbacks block that names the Python handlers:

{
    "ingress": [
        {
            "name": "left",
            "socket": { "url": "${ZMQ_INGRESS_LEFT}" },
            "eos_policy": "allow"
        },
        {
            "name": "right",
            "socket": { "url": "${ZMQ_INGRESS_RIGHT}" },
            "eos_policy": "deny"
        }
    ],
    "egress": {
        "socket": { "url": "${ZMQ_EGRESS}" }
    },
    "common": {
        "callbacks": {
            "on_merge": "merge_handler",
            "on_head_expire": "head_expired_handler",
            "on_head_ready": "head_ready_handler",
            "on_late_arrival": "late_arrival_handler",
            "on_unsupported_message": "unsupported_message_handler"
        },
        "queue": { "max_duration": { "secs": 5, "nanos": 0 } }
    }
}

Key concepts:

  • eos_policy: Controls End-of-Stream forwarding. Only one ingress should have "allow" — the Rust config loader enforces this to prevent duplicate EOS delivery.
  • queue.max_duration: How long a frame can wait for all ingresses to contribute before it’s considered “expired” and forwarded anyway.

Merge Handlers (src/meta_merge/module.py)

Each callback is a class with a __call__ method, registered by name during init(). The central piece is the MergeHandler:

class MergeHandler:
    def __call__(
        self,
        ingress_name: str,
        topic: str,
        current_state: EgressItem,
        incoming_state: Optional[EgressItem],
    ) -> bool:
        if incoming_state is not None:
            current_frame = current_state.video_frame
            incoming_frame = incoming_state.video_frame

            # Export ROI object trees (parent + all children)
            roi_query = MatchQuery.and_(
                MatchQuery.namespace(StringExpression.eq(ROI_NAMESPACE)),
                MatchQuery.label(
                    StringExpression.one_of(LEFT_ROI_LABEL, RIGHT_ROI_LABEL)
                ),
            )
            trees = incoming_frame.export_complete_object_trees(
                roi_query, delete_exported=False
            )

            if trees:
                current_frame.import_object_trees(trees)

        # Track which ingresses have contributed
        received = current_state.state.get('received_ingresses', set())
        received.add(ingress_name)
        current_state.state['received_ingresses'] = received

        # Return True when all ingresses have reported in
        return len(received) >= EXPECTED_INGRESS_COUNT

Understanding the two-call lifecycle is key to understanding the merge:

First arrival (say, from module-left): The meta-merge service creates a new EgressItem for this frame’s PTS and calls MergeHandler with incoming_state=None — there is nothing to merge yet because this is the first copy. The handler skips the if block, records "left" in received_ingresses, and returns False (only 1 of 2 ingresses have reported). The frame now sits in the merge queue, waiting.

Second arrival (from module-right, same PTS): The service calls MergeHandler again, but this time current_state is the already-queued item (carrying module-left’s objects) and incoming_state is the newly arrived copy from module-right. Now the handler enters the if block: it exports the ROI object trees (the right ROI and all its child detections) from the incoming frame and imports them into the current frame. After recording "right" in received_ingresses, it returns True — all ingresses have reported, and the merged frame is ready to send.

The EgressItem.state dict (used here for received_ingresses) persists across these calls for the same frame, making it the natural place to track merge progress.

The other callbacks handle edge cases:

  • HeadReadyHandler: Called when the merge is complete. Returns state.video_frame.to_message() to forward the merged frame.
  • HeadExpiredHandler: Called when max_duration elapses. Forwards the partial result anyway.
  • LateArrivalHandler: Called when a frame arrives after its slot was already sent. Logs and discards.

Documentation: export_complete_object_trees, import_object_trees

Step 6: Declarative Visualization

The visualization module draws bounding boxes on the merged frame. Instead of writing a custom draw function in Python, Savant supports a fully declarative approach using rendered_objects in the module YAML:

# src/visualization/module.yml
parameters:
  draw_func:
    rendered_objects:
      router:
        left_roi:
          bbox:
            border_color: 'FF000044'    # Red, semi-transparent
            background_color: 'FF000010'
            thickness: 1
          label:
            format: ['{label}']
            font_color: 'FF0000FF'
        right_roi:
          bbox:
            border_color: '0000FF44'    # Blue, semi-transparent
            background_color: '0000FF10'
            thickness: 1
          label:
            format: ['{label}']
            font_color: '0000FFFF'
        marker:
          bbox:
            border_color: 'FFD700FF'    # Gold
            thickness: 2
          label:
            format: ['{label} {confidence:.2f}']
      yolov11n:
        person:
          bbox:
            border_color: '00FF00FF'    # Green
            thickness: 2
          label:
            format: ['{label} {confidence:.2f}']

pipeline:
  elements: []    # No processing — just draw and forward

The element name (router, yolov11n) must match the object’s namespace, and the label (left_roi, person) must match the object’s label. Colours are RRGGBBAA hex strings. Available label placeholders include {model}, {label}, {confidence}, and {track_id}.

The pipeline has zero elements — this module only draws and encodes.

Documentation: NvDsDrawFunc — look at other samples like peoplenet_detector or yolov11_seg for more rendered_objects examples.

Step 7: Docker Compose — Wiring It All Together

The Base Compose (L4T)

The docker-compose.l4t.yml is the single source of truth. It defines every service, every volume, every environment variable, and every dependency:

services:
  video-loop-source:
    image: ghcr.io/insight-platform/savant-adapters-gstreamer-l4t:latest
    volumes:
      - zmq_sockets:/tmp/zmq-sockets
    environment:
      - ZMQ_ENDPOINT=dealer+connect:ipc:///tmp/zmq-sockets/input-video.ipc
      - SOURCE_ID=video
    depends_on:
      always-on-sink:
        condition: service_started

  router:
    image: ghcr.io/insight-platform/savant-router-arm64:savant-latest
    volumes:
      - ./src/router/config.json:/opt/etc/configuration.json:ro
      - ./src:/opt/python:ro
      - zmq_sockets:/tmp/zmq-sockets
    environment:
      - ZMQ_INGRESS=router+bind:ipc:///tmp/zmq-sockets/input-video.ipc
      - ZMQ_EGRESS_LEFT=dealer+bind:ipc:///tmp/zmq-sockets/left.ipc
      - ZMQ_EGRESS_RIGHT=dealer+bind:ipc:///tmp/zmq-sockets/right.ipc
    depends_on:
      module-left:
        condition: service_healthy
      module-right:
        condition: service_healthy

  module-left:
    image: ghcr.io/insight-platform/savant-deepstream-l4t:latest
    command: samples/meta_merge/src/detector/module.yml
    environment:
      - ZMQ_SRC_ENDPOINT=router+connect:ipc:///tmp/zmq-sockets/left.ipc
      - ZMQ_SINK_ENDPOINT=dealer+connect:ipc:///tmp/zmq-sockets/meta_merge_left.ipc
      - MODULE_ROI=left
    runtime: nvidia

  module-right:
    # Same image and command as module-left, but connects to different sockets
    environment:
      - ZMQ_SRC_ENDPOINT=router+connect:ipc:///tmp/zmq-sockets/right.ipc
      - ZMQ_SINK_ENDPOINT=dealer+connect:ipc:///tmp/zmq-sockets/meta_merge_right.ipc
      - MODULE_ROI=right
    depends_on:
      module-left:
        condition: service_healthy

  meta-merge:
    image: ghcr.io/insight-platform/savant-meta-merge-arm64:savant-latest
    volumes:
      - ./src/meta_merge/config.json:/opt/etc/configuration.json:ro
      - ./src/meta_merge:/opt/python:ro
    environment:
      - ZMQ_INGRESS_LEFT=router+bind:ipc:///tmp/zmq-sockets/meta_merge_left.ipc
      - ZMQ_INGRESS_RIGHT=router+bind:ipc:///tmp/zmq-sockets/meta_merge_right.ipc
      - ZMQ_EGRESS=dealer+bind:ipc:///tmp/zmq-sockets/meta_merge_output.ipc
    depends_on:
      module-left:
        condition: service_healthy
      module-right:
        condition: service_healthy

  visualization:
    command: samples/meta_merge/src/visualization/module.yml
    environment:
      - ZMQ_SRC_ENDPOINT=router+connect:ipc:///tmp/zmq-sockets/meta_merge_output.ipc
      - ZMQ_SINK_ENDPOINT=dealer+bind:ipc:///tmp/zmq-sockets/output-video.ipc
    depends_on:
      meta-merge:
        condition: service_started

  always-on-sink:
    ports: ["554:554", "1935:1935", "888:888", "8889:8889"]
    environment:
      - ZMQ_ENDPOINT=router+connect:ipc:///tmp/zmq-sockets/output-video.ipc
    depends_on:
      visualization:
        condition: service_healthy

volumes:
  zmq_sockets:

(Abbreviated for clarity — see the full file for all properties.)

Startup Order

The depends_on chain ensures the pipeline is ready before any frames flow:

module-left ──┐                               ┌── always-on-sink ── video-loop-source
              ├→ router ── meta-merge → visualization
module-right ─┘

Modules start first and become healthy (their built-in healthcheck hits http://localhost:8080/status and waits for "running"). Only then does the router start — followed by meta-merge, visualization, the sink, and finally the source.

Why the source starts last: if frames arrive before the pipeline is ready, they queue up and can cause timeouts or even crashes in the merge queue.

ZMQ Transport

All links use DEALER/ROUTER over IPC (Unix domain sockets). This gives reliable delivery with backpressure — essential for a pipeline where every frame must be processed:

Link Writer Reader
source → router dealer+connect router+bind
router → modules dealer+bind router+connect
modules → meta-merge dealer+connect router+bind
meta-merge → visualization dealer+bind router+connect
visualization → sink dealer+bind router+connect

The general rule: the party receiving multiplexed streams usually must bind; the party handling a single stream connects. For more on Savant’s ZMQ patterns, see the Communication Sockets documentation.

The x86 Variant

The x86 compose extends the L4T base and only overrides what differs: images (x86 variants) and GPU access (dGPU instead of Jetson):

# docker-compose.x86.yml
services:
  module-left:
    image: ghcr.io/insight-platform/savant-deepstream:latest
    extends:
      file: docker-compose.l4t.yml
      service: module-left
    runtime: runc
    deploy:
      resources:
        reservations:
          devices:
            - driver: nvidia
              count: 1
              capabilities: [gpu]

On Jetson, GPU access is via runtime: nvidia. On x86 dGPU, it’s runtime: runc plus deploy.resources.reservations.devices. The runtime: runc is necessary to override the inherited runtime: nvidia from the L4T base.

Docker Compose extends does inherit depends_on and other attributes.

Tip: Always verify the resolved config with docker compose -f docker-compose.x86.yml config to see exactly what Compose will run.

Step 8: Running the Demo

x86 (dGPU)

cd samples/meta_merge
docker compose -f docker-compose.x86.yml up

Jetson (L4T)

cd samples/meta_merge
docker compose -f docker-compose.l4t.yml up

Viewing the Stream

The always-on-sink publishes the annotated video via multiple protocols:

Protocol URL
RTSP rtsp://localhost:554/stream/video
HLS http://localhost:888/stream/video

You should see the video with red/blue ROI overlays, green person detection boxes, and gold marker squares drifting smoothly within each half.

Step 9: Building the End-to-End Test

A demo is nice, but it doesn’t tell you whether the pipeline is correct. For that, we replace the video source and the RTSP sink with a deterministic test source and an automated test sink.

Test Architecture

              ┌─────────────────────────────────────────────────┐
test-source → │ router → modules → meta-merge → visualization   │ → test-sink
              └────────────────── blackbox ─────────────────────┘

The test source knows what it sent. The test sink checks what came out. Everything in between is treated as a blackbox.

Test Source (test/source.py)

The source:

  1. Loads a JPEG image and merges it side-by-side (L|R) to simulate a video which is sent in this demo (a side-by-side video).
  2. Runs YOLOv11 on the merged image to get ground-truth person detections.
  3. Stores the expected bounding boxes as a frame attribute (source.person).
  4. Sends the frame via ZMQ DEALER with the JPEG data as an extra argument.
# Key fragment — frame creation
frame = VideoFrame(
    source_id=source_id,
    framerate='30/1',
    width=width, height=height,
    content=VideoFrameContent.external(ExternalFrameType.ZEROMQ.value, None),
    transcoding_method=VideoFrameTranscodingMethod.Copy,
    codec='jpeg',
    keyframe=True,
    pts=rep,
)
frame.set_persistent_attribute(
    namespace='source', name='person', values=values,
)

msg = Message.video_frame(frame)
res = writer.send_message(source_id, msg, merged_bytes)

Note VideoFrameContent.external(ExternalFrameType.ZEROMQ.value, None) — this tells the pipeline that the image data arrives as a ZMQ extra argument, not embedded in the frame. The enum .value is required; the string literal "zeromq" does not work.

After sending all frames, the source sends EOS and then idles (controlled by POST_EOS_IDLE_S) to keep the container alive while the pipeline drains.

Test Sink (test/sink.py)

The sink:

  1. Receives frames via ZMQ ROUTER.
  2. Extracts person detections from the frame (objects with label='person').
  3. Retrieves the stored (source, person) attribute containing the ground-truth boxes.
  4. Compares expected vs. detected using IoU (Intersection over Union) with a threshold of 0.5.
  5. Exits 0 on PASSED, 1 on FAILED.
def compare_with_iou(frame_uuid, expected, detected) -> bool:
    used = [False] * len(detected)
    for exp_bbox, _ in expected:
        best_iou = 0.0
        best_idx = -1
        for i, det_bbox in enumerate(detected):
            if used[i]:
                continue
            iou = exp_bbox.iou(det_bbox)
            if iou > best_iou:
                best_iou = iou
                best_idx = i
        if best_iou < IOU_THRESHOLD or best_idx < 0:
            return False
        used[best_idx] = True
    return all(used)

The greedy matching algorithm assigns each expected box to its best unused detection. Every box must match with IoU ≥ 0.5, and there must be no unmatched detections.

Test Dockerfile

The test container needs savant-rs (for ZMQ + frame serialisation), PyTorch (for YOLO inference), and Ultralytics:

FROM ghcr.io/insight-platform/savant-rs-py314:savant-latest

RUN apt-get update && apt-get install -y --no-install-recommends \
    libxcb1 libgl1 libglib2.0-0 && rm -rf /var/lib/apt/lists/*

RUN pip install --no-cache-dir torch torchvision \
    --index-url https://download.pytorch.org/whl/cu130 \
    && pip install --no-cache-dir Pillow ultralytics>=8.0.0

# Pre-download model at build time
RUN mkdir -p /opt/models && cd /opt/models \
    && python -c "from ultralytics import YOLO; YOLO('yolo11m.pt')"

Test Compose (docker-compose.x86-test.yml)

The test compose replaces the video-loop-source and always-on-sink with custom services, while extending all pipeline services from the L4T base:

services:
  video-loop-source:
    build:
      context: test
      dockerfile: Dockerfile
    runtime: runc
    restart: "no"                  # Don't restart after test completes!
    deploy:
      resources:
        reservations:
          devices:
            - driver: nvidia
              count: 1
              capabilities: [ gpu ]
    volumes:
      - zmq_sockets:/tmp/zmq-sockets
      - ./test:/app:ro
    working_dir: /app
    environment:
      - PYTHONUNBUFFERED=1
      - ZMQ_SOCKET=dealer+connect:ipc:///tmp/zmq-sockets/input-video.ipc
      - SOURCE_ID=video
      - ZMQ_SEND_TIMEOUT_MS=10000
      - ZMQ_RECEIVE_TIMEOUT_MS=5000
      - ZMQ_SEND_RETRIES=10
      - ZMQ_RECEIVE_RETRIES=10
      - REPETITIONS=10
      - FRAME_INTERVAL_MS=10
      - POST_EOS_IDLE_S=3600
      - FRAME_WIDTH=1280
      - FRAME_HEIGHT=720
      - IMAGE_PATH=/app/test_image.jpeg
    command: python source.py

  always-on-sink:
    build:
      context: test
      dockerfile: Dockerfile
    runtime: runc
    restart: "no"
    volumes:
      - zmq_sockets:/tmp/zmq-sockets
      - ./test:/app:ro
    working_dir: /app
    environment:
      - PYTHONUNBUFFERED=1
      - ZMQ_SOCKET=router+connect:ipc:///tmp/zmq-sockets/output-video.ipc
      - ZMQ_RECEIVE_TIMEOUT_MS=5000
      - MAX_STARTUP_S=600
      - MAX_IDLE_S=60
    command: python sink.py
    deploy:
      resources:
        reservations:
          devices:
            - driver: nvidia
              count: 1
              capabilities: [ gpu ]

  # Pipeline services extend from l4t with x86 overrides
  router:
    image: ghcr.io/insight-platform/savant-router-x86:savant-latest
    restart: "no"
    extends:
      file: docker-compose.l4t.yml
      service: router
  # ... module-left, module-right, meta-merge, visualization similarly

Key points:

  • restart: "no" overrides restart: unless-stopped from the base. Without this, --abort-on-container-exit kills containers but they immediately restart.
  • The same depends_on chain from the L4T base is inherited, ensuring correct startup order.

Running the Test

cd samples/meta_merge

# Create test image (first time only)
python test/create_test_image.py

# Build (downloads YOLO model — takes a few minutes)
docker compose -f docker-compose.x86-test.yml build

# Run
docker compose -f docker-compose.x86-test.yml up --abort-on-container-exit

The sink prints PASSED or FAILED and exits with the corresponding code. This integrates directly with CI systems.

Pitfalls and Lessons Learned

1. PUB/SUB Loses Frames

ZeroMQ’s PUB/SUB pattern has a “slow joiner” problem: the publisher starts sending before the subscriber has finished connecting, and early messages are silently dropped. In testing, this caused 1 of 10 frames to be lost.

Solution: Use DEALER/ROUTER for any pipeline where every frame matters. PUB/SUB is only appropriate for real-time broadcasting where frame loss is acceptable.

2. savant-rs Protocol Version Mismatches

If the router logs Received blacklisted message: [118, 105, 100, 101, 111] (the bytes spell “video” — the topic string), it means the router cannot deserialise messages from the source. This happens when the savant-rs version in your test container doesn’t match the pipeline images.

Solution: Pull the latest images with ./utils/update_local_images.sh and rebuild.

3. Import Paths Are Non-Obvious

savant-rs has a nested Python module structure. from savant_rs.api.enums import ExternalFrameType does not work — the correct path is from savant_rs.py.api.enums import ExternalFrameType. Always verify against the .pyi stub files.

4. LogLevel.Warning, Not LogLevel.Warn

Using LogLevel.Warn raises AttributeError. The correct member name is LogLevel.Warning.

5. delete_objects Does Not Cascade

frame.delete_objects(query) removes matching objects but leaves their children orphaned. To delete an entire subtree, use frame.export_complete_object_trees(query, delete_exported=True).

6. Always Verify Compose with config

docker compose -f docker-compose.x86.yml config

This shows the fully resolved YAML — merged extends, expanded environment variables, and resolved depends_on chains. It catches typos and merge surprises before you spend time debugging container startup.

Summary

Building a fan-out/fan-in pipeline with Savant involves:

  1. Shared constants — a single Python file imported by all components
  2. Router — creates ROI objects, fans out to parallel modules
  3. Ingress filter — removes the wrong ROI per module instance
  4. Detector modules — standard Savant DeepStream pipelines with ROI-scoped inference
  5. Meta-merge — generic Rust service with Python callbacks for custom merge logic
  6. Declarative visualization — no Python code, just YAML
  7. Docker Compose extends — L4T base, x86 and test variants
  8. E2E test — ground-truth source, IoU-comparison sink, exit codes for CI

Remember that the spatial left/right split in this sample is a deliberate demonstration technique, not a limitation of the architecture. It makes merge correctness visually self-evident — you can see at a glance whether both halves contributed their detections to the final frame.

In production, the more common pattern is multiple pipelines operating on the same ROI — each contributing a different type of analysis. For example, one branch runs person detection while another runs vehicle detection, and the meta-merge combines both sets of objects onto a single frame for downstream consumption. The framework, transport topology, callback structure, Docker Compose pattern, and E2E test strategy described in this article apply identically to that scenario. Only the router (which would clone the frame instead of splitting it) and the merge handler (which would combine different object namespaces rather than different spatial regions) need to change.
